About This Vehicle

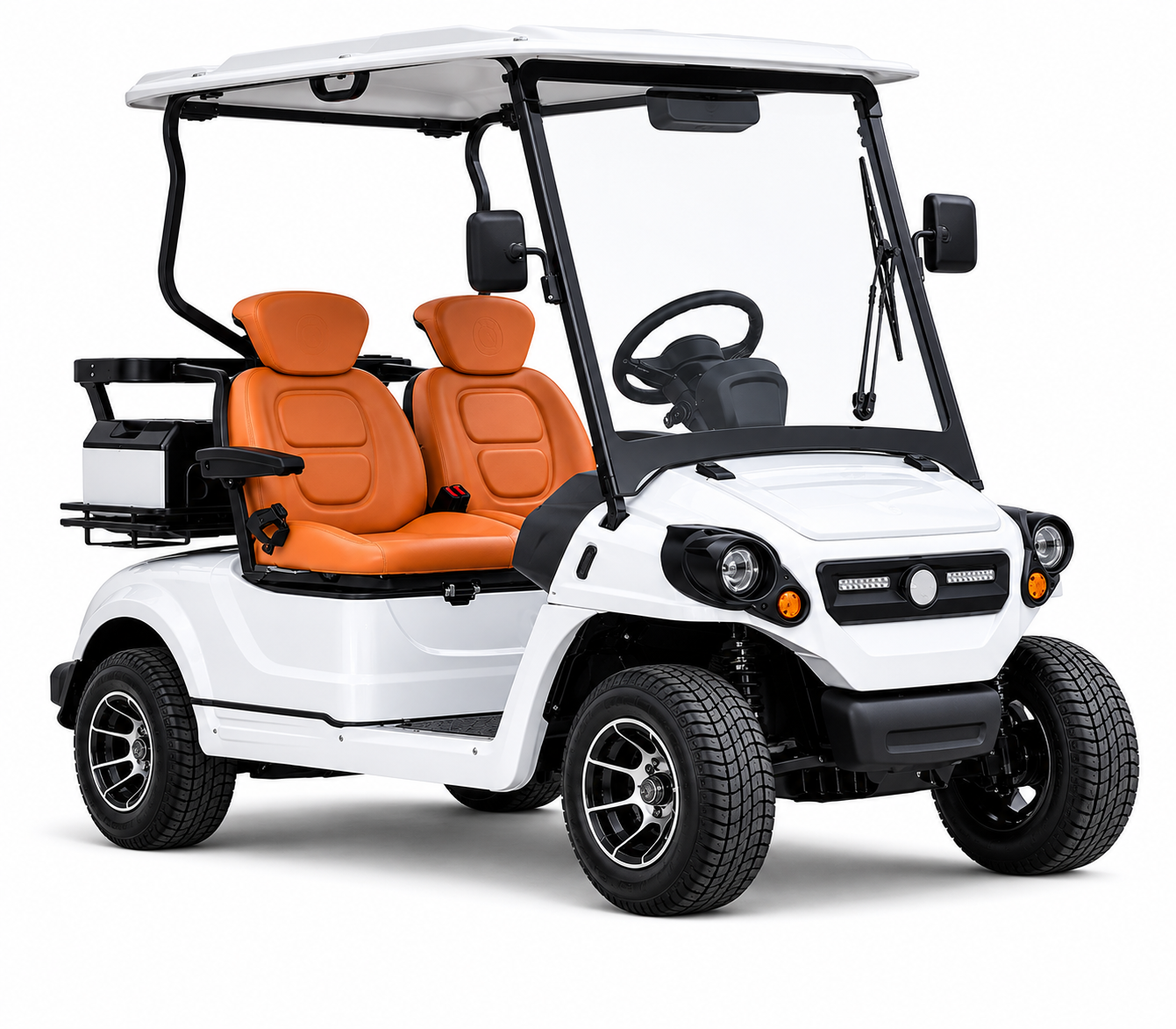

The PC-2 is a compact, premium electric golf buggy built to a far higher standard than a typical golf cart. It’s ideal for golf clubs, resorts, hotels, estates and private grounds. It comes as a two-seater (driver plus one passenger) or with rear seating for up to four people. At just 1,215 mm wide and 2,395 mm long, with a tight 3 m turning radius, it moves easily along narrow paths, around greens and through tight turns. It runs on a 48 V AC drive, with a top speed adjustable between 24 and 40 km/h (15 to 25 mph). It has up to 90 km (56 miles) of range and can climb gradients of up to 25%.

Motor and battery options

Two AC motors are available:

  • 4 kW rated (5.44 hp), 9.6 kW peak (13 hp)
  • 6 kW rated (8.2 hp), 12.46 kW peak (16.95 hp)

Three battery packs are available:

  • Lead-acid: 6 x 8 V (8.16 kWh), with an onboard charger. Up to 60 km (37 miles) of range, charging to 80% in 6 hours and fully in 8 hours.
  • Lithium 10.8 kWh: with a 3.3 kW onboard charger. Up to 90 km (56 miles) of range, charging to 80% in 4 hours and fully in 6 hours.
  • Lithium 5.4 kWh: with a 3.3 kW onboard charger. Up to 55 km (34 miles) of range, charging to 80% in 3 hours and fully in 5 hours.

The lithium packs are lighter and maintenance-free. They’re designed to keep at least 70% of their performance after a minimum of 2,500 charge cycles.

Chassis and running gear

  • Chassis: automotive-style steel frame with high corrosion resistance, protected by sanding, e-coating, wet paint and PVC coating
  • Front suspension: fully independent, automotive-type MacPherson strut
  • Rear suspension: semi-independent swing arm with coil springs over hydraulic shock absorbers, for a smooth, comfortable ride
  • Steering: self-compensating, double-reduction helical rack and pinion that needs no lubrication, with electric power steering available as an option
  • Brakes: hydraulic drum brakes on all four wheels, with an electromagnetic parking brake

Body and colours

The body is made from tough thermoplastic ABS, coloured all the way through the material rather than just on the surface, so it keeps its finish for years. It comes in white, midnight blue or black as standard, with a custom colour available on request.

Warranty

  • 2 years full warranty, excluding wearable items
  • 2 years limited warranty on the motor and motor control unit

Specification

  • Seating: 2 (driver plus one passenger), or 4 (driver plus three passengers)
  • Length: 2,395 mm
  • Width: 1,215 mm
  • Height: 1,965 mm with sun top, 1,200 mm without
  • Wheelbase: 1,640 mm
  • Ground clearance: 110 mm
  • Turning radius: 3 m
  • Weight: 692 kg (lead-acid), 528 kg (lithium 10.8 kWh), 479 kg (lithium 5.4 kWh)
  • Load capacity: 400 kg
  • Towing capacity: 500 kg
  • Tyres: 20.5 x 8-10 (6 ply), or 22 x 9.50-10 off-road tyres with the optional lift kit
  • System voltage: 48 V AC
  • Maximum forward speed: 24 to 40 km/h (15 to 25 mph), adjustable
  • Maximum reverse speed: 8 km/h (5 mph)
  • Range: up to 60 km (37 miles) lead-acid, 90 km (56 miles) lithium 10.8 kWh, or 55 km (34 miles) lithium 5.4 kWh
  • Maximum gradient: 25%
