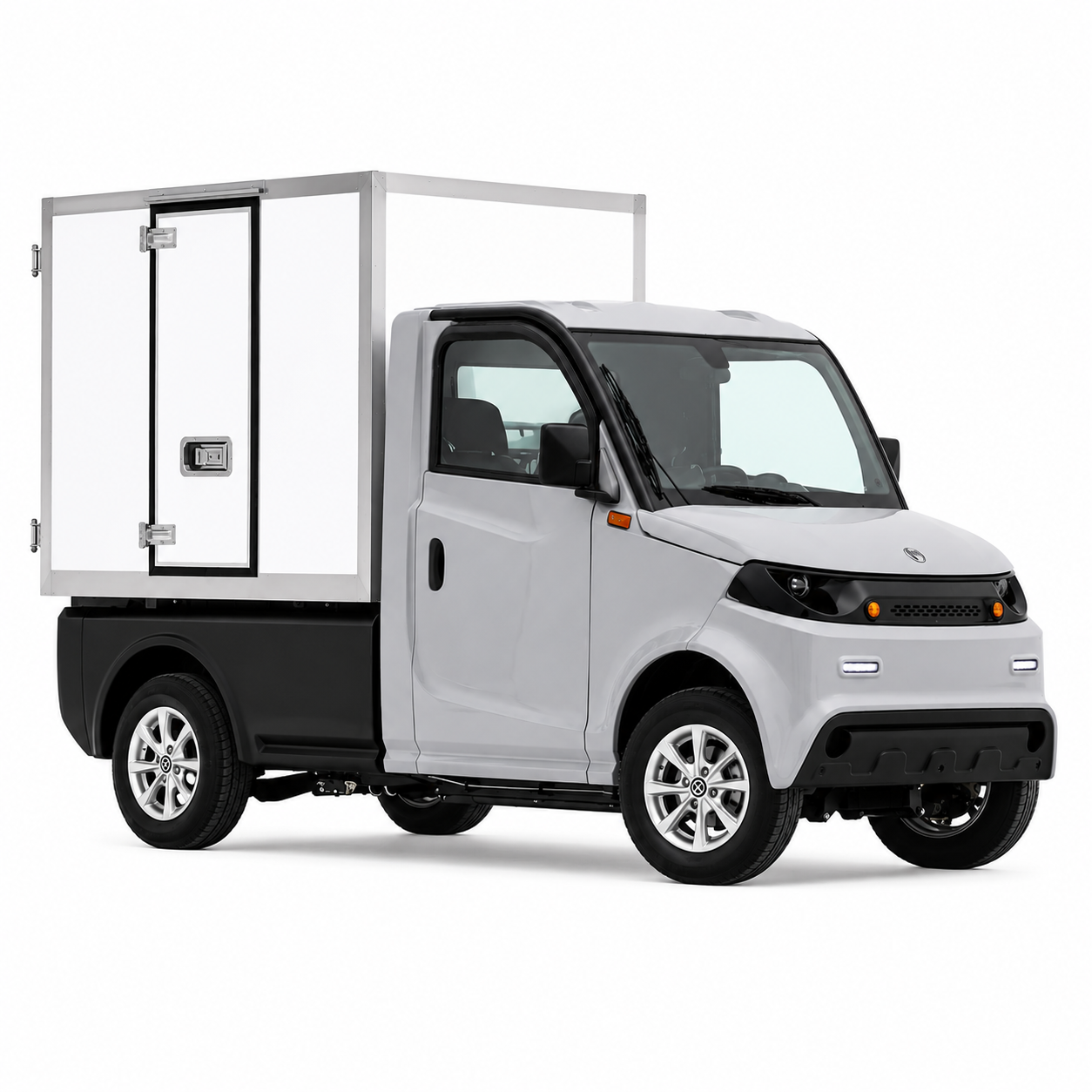

P-1000 Cargo

The P-1000 Cargo is a compact, fully electric box van for deliveries and secure, weatherproof transport in places a full-size van can't reach. At 1,350 mm wide and under 3.7 m long, it suits estates, campuses, town centres, depots and pedestrian areas, with a two-seat enclosed cab and an enclosed cargo box behind. It runs on a 48 V AC drive with a 10 kW motor, reaches 50 km/h (31 mph), climbs gradients of up to 25% and carries up to 882 kg.

Cargo box and towing

The enclosed cargo box sits on a load platform 1,570 mm long and 1,328 mm wide, with a box height of 975 mm and rear and side doors for access. A loading height of 880 mm makes it easy to load by hand. With the optional towing hitch fitted, the vehicle can tow up to 250 kg on the road and up to 2,000 kg off-road.

Battery options

Three lithium iron phosphate (LiFePO4) batteries are available, each rated for 4,000 charge cycles. The larger the battery, the longer the range and the lower the load capacity, so the choice comes down to how far it travels against how much it carries.

• 10.8 kWh: 80 km (50 miles) range, 988 kg unladen, 882 kg load capacity
• 16.1 kWh: 130 km (81 miles) range, 1,068 kg unladen, 802 kg load capacity
• 21 kWh: 160 km (99 miles) range, 1,208 kg unladen, 662 kg load capacity

Gross vehicle weight is 1,870 kg on every version.

Chassis and running gear

• Chassis: automotive-style heavy-duty steel frame with high corrosion resistance
• Cab: aluminium frame with a painted moulded body
• Drive: rear-wheel drive with electronic speed control and two driving modes
• Suspension: fully independent double wishbone front with coil springs over hydraulic shock absorbers, and a rigid rear axle on leaf springs with dual hydraulic shocks
• Steering: rack and pinion with electric power steering
• Brakes: servo-assisted, with hydraulic discs at the front and hydraulic drums at the rear, a mechanical parking brake with safety sensor, and regenerative braking

Cab and comfort

The cab is equipped more like a small van than a site vehicle. Standard equipment includes:

• Digital vehicle information screen
• Central locking with remote control and power windows
• Adjustable driver and passenger seats with integrated headrests and a central armrest
• Bluetooth and USB audio system, plus a 12 V and USB port
• Heater, in-cab lighting, sun visors and windscreen wash
• Rear view camera and parking sensor

Safety and lighting

• Three-point seat belts with a driver seat belt sensor
• Immobiliser and horn
• In-cab emergency stop switch
• Halogen high and low beam headlights with LED daytime running lights
• LED rear brake, position and reversing lights

Options

• Colour: white as standard, with red, yellow, orange or grey available
• Electric heater and air conditioning
• Amber LED beacon
• Reverse buzzer
• Towing hitch
• Tyres: 165 R13C 94/92R in summer or winter specification

Specification

• Length: 3,693 mm
• Width: 1,350 mm
• Height: 2,110 mm
• Wheelbase: 2,462 mm
• Ground clearance: 185 mm
• Loading height: 880 mm
• Load platform length: 1,570 mm
• Cargo box width: 1,328 mm
• Cargo box height: 975 mm
• Seats: driver plus one passenger
• Maximum speed: 50 km/h (31 mph)
• Maximum gradient: 25%
• System voltage: 48 V AC
• Motor nominal power: 10 kW
• Gross vehicle weight: 1,870 kg
• Towing capacity: 250 kg on-road, 2,000 kg off-road, with optional towing hitch
