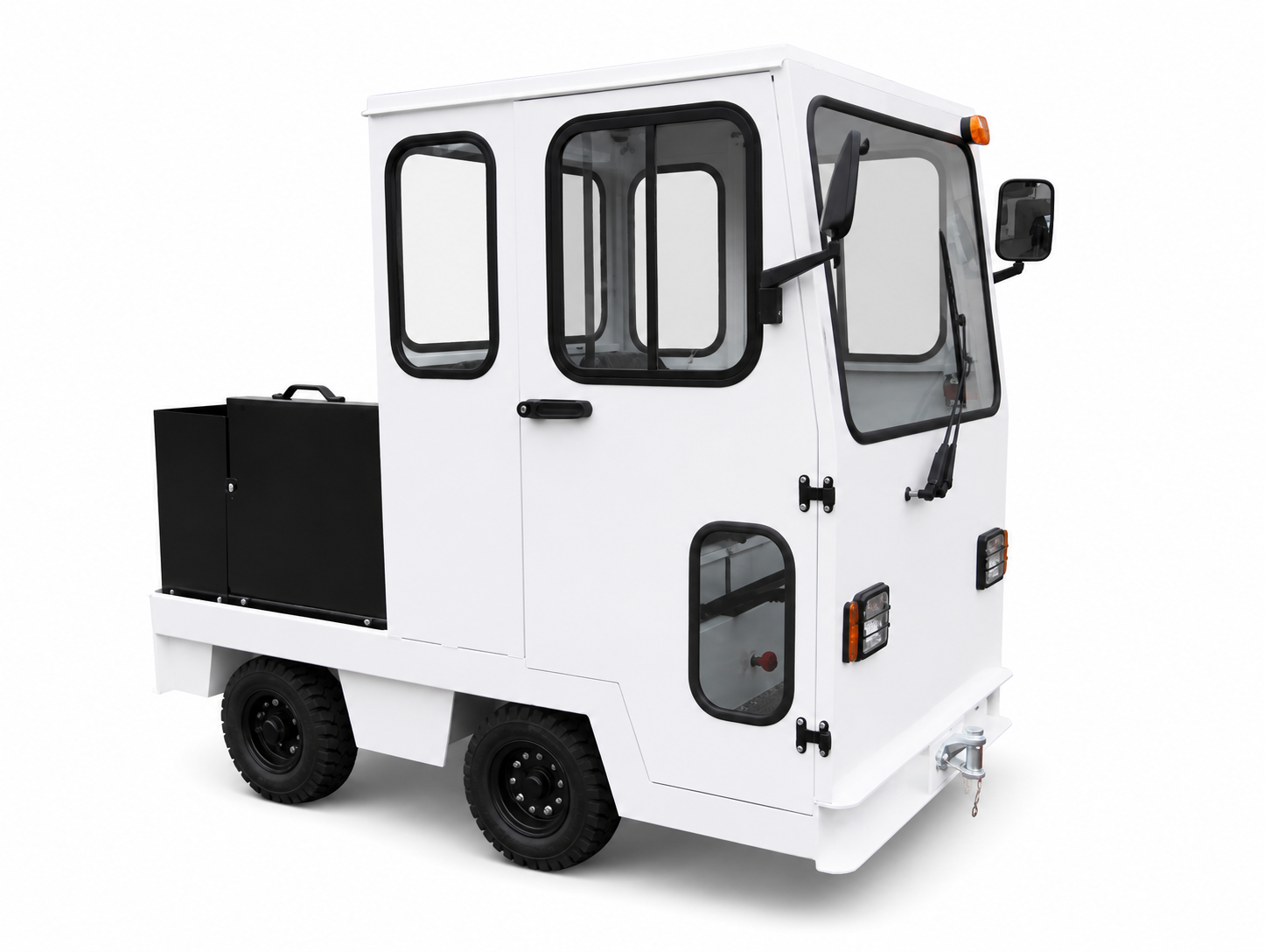

350AC Heavy-Duty Electric Tow Tug

The 350AC is a heavy-duty electric tow tug engineered for demanding industrial towing applications. With an impressive 7,000 kg towing capacity on flat, level ground, a powerful 8kW AC drive system, hydraulic power steering and a fully enclosed two-person cab, it provides serious towing performance while maintaining excellent operator control and comfort.

Designed for operations where substantial loads need to be moved efficiently and reliably, the 350AC combines a high-capacity 48V battery system with four-wheel hydraulic braking, configurable electronic speed control and a versatile towing coupling.

7,000 kg Towing Capacity

The 350AC is capable of towing loads of up to 7 tonnes on flat, level ground, making it an excellent choice for demanding material movement applications.

Despite its substantial towing capability, the vehicle maintains practical dimensions. Overall length is 2,350 mm including the tow hitch, while the body is 1,100 mm wide, increasing to 1,550 mm including the mirrors. Overall height is 1,895 mm, with an outer turning radius of 1,950 mm.

Powerful 8kW AC Drive System

At the heart of the 350AC is a powerful 8kW AC electric motor, driving through a gearbox and differential.

A fully electronic, fail-safe speed controller is operated by a foot control and provides configurable forward and reverse take-off speeds. Motor braking and vehicle speeds can also be set to suit individual site and customer requirements, allowing the vehicle's performance to be tailored to its working environment.

Hydraulic Power Steering

The 350AC is equipped with hydraulic power steering, helping provide controlled and responsive manoeuvring while contributing to its improved turning circle.

Road springs are fitted to both the front and rear axles, while 4.00 × 8 × 10-ply tyre-filled wheels and tyres provide a robust setup for demanding working environments.

High-Capacity 48V Battery

The 350AC is powered by a substantial 48V, 420Ah battery system, providing the capacity required for heavy-duty electric towing operations.

Charging is handled by a fully automatic single-phase charger with low-voltage start, providing a straightforward charging solution for day-to-day operation.

Four-Wheel Hydraulic Braking

For confident control of heavy loads, the 350AC features hydraulic brakes on all four wheels, complemented by a handbrake for parking.

The electronic controller also provides configurable motor braking, allowing braking characteristics to be adapted to the individual site and application.

Full Two-Person Cab

Operator comfort and protection are key features of the 350AC. The vehicle is equipped with a full steel, low-step cab with slam doors, sliding windows, a full windscreen with wiper and standard wing mirrors.

Inside, there are two semi-suspension seats with lap belts, making the 350AC suitable for carrying a driver and passenger.

As shown in the photographs on page 2 of the specification sheet, the cab provides an enclosed driving position with excellent visibility, while the low-step design provides convenient operator access.

Comprehensive Dashboard & Controls

The full dashboard is equipped with sealed rocker switches and a digital display providing the operator with important vehicle information.

The display includes:

• Vehicle speed

• Battery condition

• Trip counter

• Hour meter

• Function indicators

This provides the operator with clear access to essential vehicle information during use.

Complete Road-Style Lighting

The 350AC comes equipped with a comprehensive lighting system, including halogen headlights with side lights, LED stop/tail lights and indicators.

A 7-pin rear socket is fitted for trailer lighting, together with a rear number plate light. Flashing beacons are also fitted to both the front and rear of the cab, while an adjustable multi-tone reversing sounder provides an additional warning when manoeuvring.

Versatile Towing Coupling

A multi-jaw towing coupling is fitted as standard, providing a practical connection for a variety of towing applications. Alternatively, the vehicle can be specified with a 50 mm ball-and-pin coupling.

Key Specifications

• Maximum towing capacity: 7,000 kg on flat, level ground

• Speed: Configurable to site requirements

• Overall length: 2,350 mm including tow hitch

• Overall width: 1,100 mm

• Width including mirrors: 1,550 mm

• Overall height: 1,895 mm

• Outer turning radius: 1,950 mm

• Wheels & tyres: 4.00 × 8 × 10-ply, tyre filled

• Suspension: Road springs on front and rear axles

• Seating: Two semi-suspension seats with lap belts

• Drive motor: 8kW AC motor

• Transmission: Gearbox and differential

• Steering: Hydraulic power steering

• Battery: 48V, 420Ah

• Charger: Fully automatic single-phase charger with low-voltage start

• Brakes: Hydraulic brakes on all four wheels

• Parking brake: Handbrake

• Towing coupling: Multi-jaw as standard or 50 mm ball-and-pin coupling

• Lighting: Halogen headlights, side lights, LED stop/tail lights and indicators

• Trailer connection: Rear 7-pin lighting socket

• Beacons: Front and rear cab-mounted flashing beacons

• Reverse warning: Multi-tone, volume-adjustable reversing sounder

• Ignition: Two keys supplied

• Finish: Yellow or one colour of your choice

Optional Equipment

The 350AC can be further equipped to suit specific operating environments. Available optional extras include:

• Spare wheel and tyre

• Rear work light, controlled from the dashboard

• Front work light, controlled from the dashboard

• Rear-view mirror

• Road registration, including front and rear number plates

• Electric heater with twin outlets, two-speed fan and variable thermostat

Serious Electric Towing Performance

With its 7-tonne towing capacity, powerful 8kW AC drivetrain, 48V 420Ah battery, four-wheel hydraulic brakes and hydraulic power steering, the 350AC is built for applications where dependable heavy-duty towing is essential.

The addition of a full two-person steel cab, comprehensive lighting, configurable vehicle performance and a versatile towing system makes the 350AC a highly capable electric tow tug for industrial sites, factories, warehouses and other demanding material-handling environments.
