250/1000 Platform

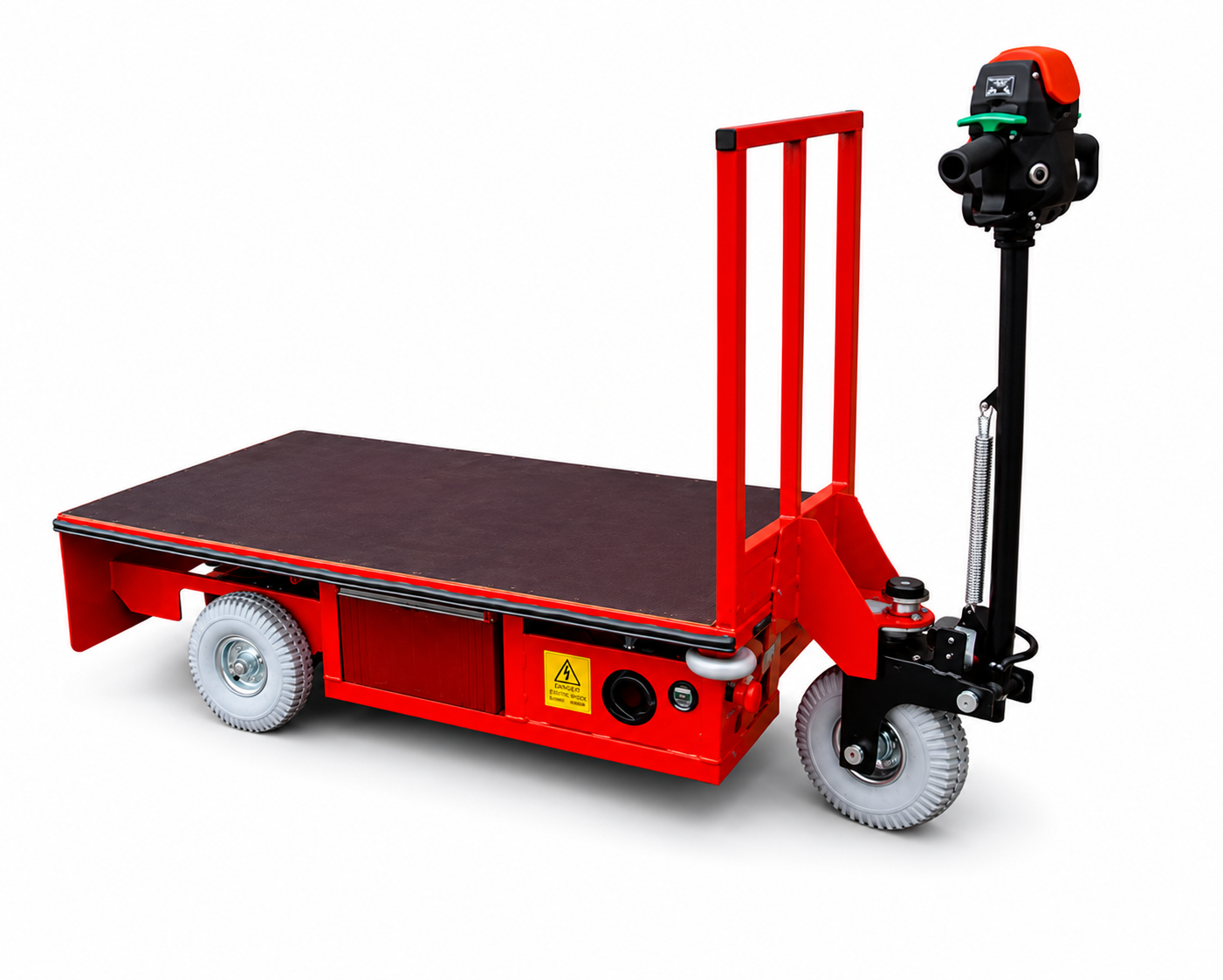

250-1000 Pedestrian Controlled Platform Truck.

The 250-1000 is a compact electric platform truck built for moving heavy loads on foot, safely and with very little effort. It carries up to 750 kg on a one-piece timber deck, yet at only 710 mm wide it fits through standard doorways and along narrow aisles and corridors.

Power comes from a 1,200 W SEPEX motor with a motor brake, driving a rear axle with an integral differential and managed by a Curtis electronic controller. Two sealed 12 V 130 Ah batteries need no topping up, and a combined battery and hour meter shows the charge level and running hours.

The operator controls everything from the tiller head: a butterfly switch for forward and reverse, a horn button and a keyed ignition supplied with two keys. If the tiller's emergency button comes into contact with the operator, the truck automatically reverses for 1 m. A separate emergency stop, fitted as standard, cuts all power to the truck.

The non-marking tyres are filled to make them puncture-proof, so they protect finished floors and remove the downtime of a flat. The truck is finished in red as standard, or in any single colour of your choice.

Specification
